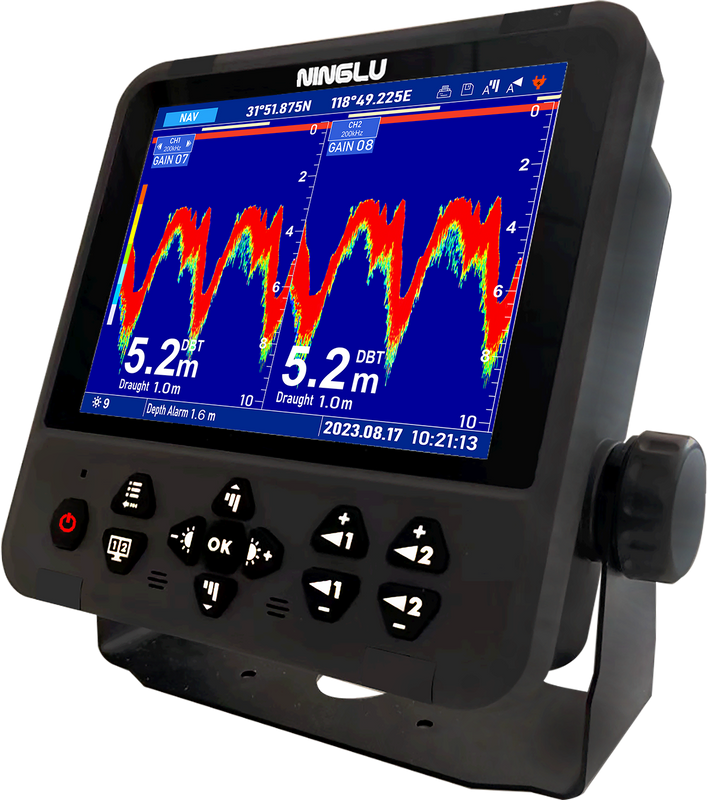

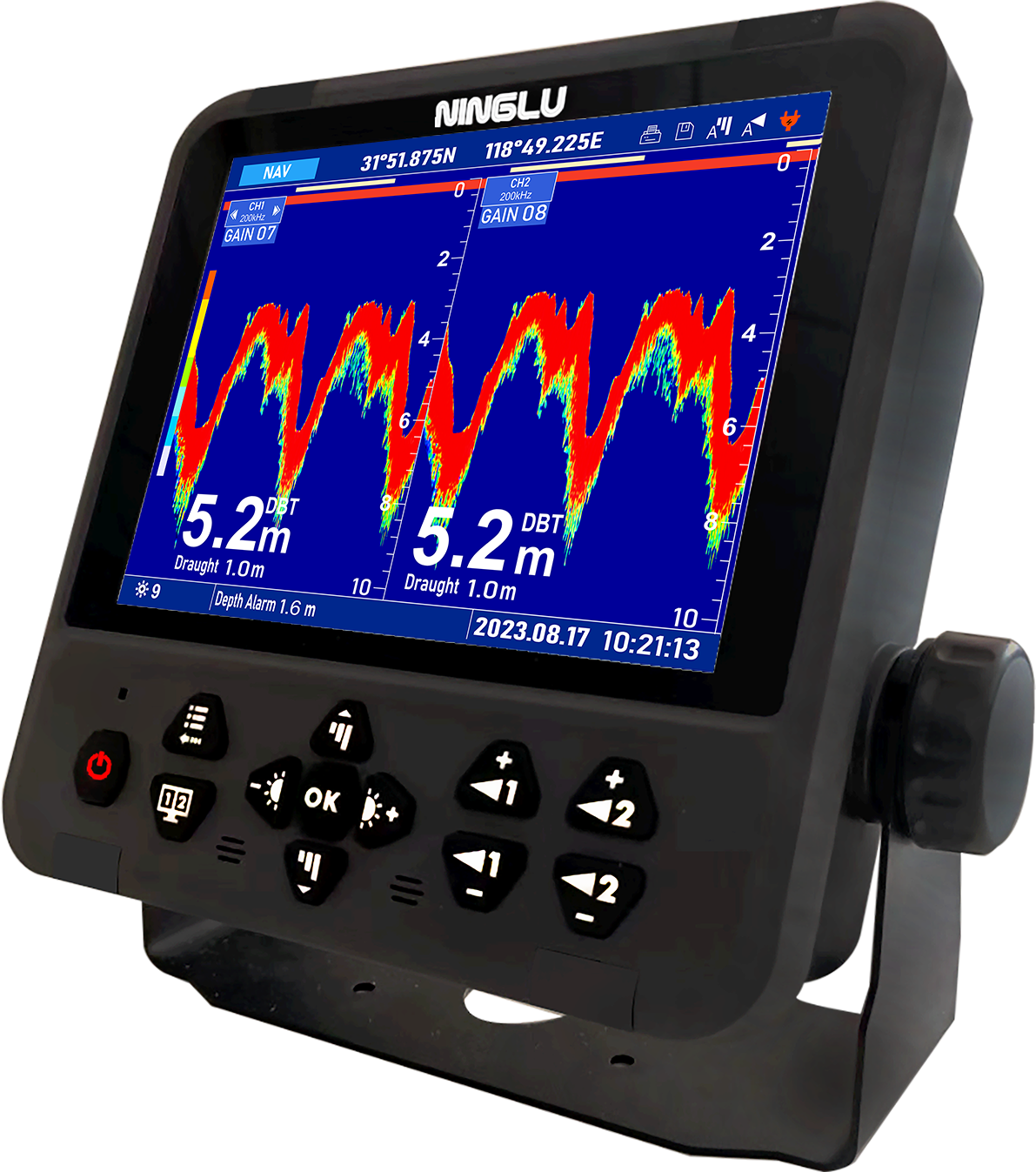

Navigational Sounder DS228

8 inch LCD, meeting IMO rules
  • DS228

  • NINGLU

Availability:
Quantity:

The navigation sounder DS228 is an ultrasonic echo sounder for ships, which uses ultrasound to measure the depth of the water when the ship is stationary or sailing, so that the staff on board can understand the real-time water depth situation and avoid the ship running aground.

DS228 has two channels, color echo display, clear picture, simple operation, strong reliability, can continuously and stably measure underwater depth, and draw echo image. DS228 also has shallow water alarm, data storage, historical playback, data output and other functions.

DS228 conforms to the International Maritime Organization specification and IEC61162 standard, and can be widely used in international and domestic navigation and inland navigation.

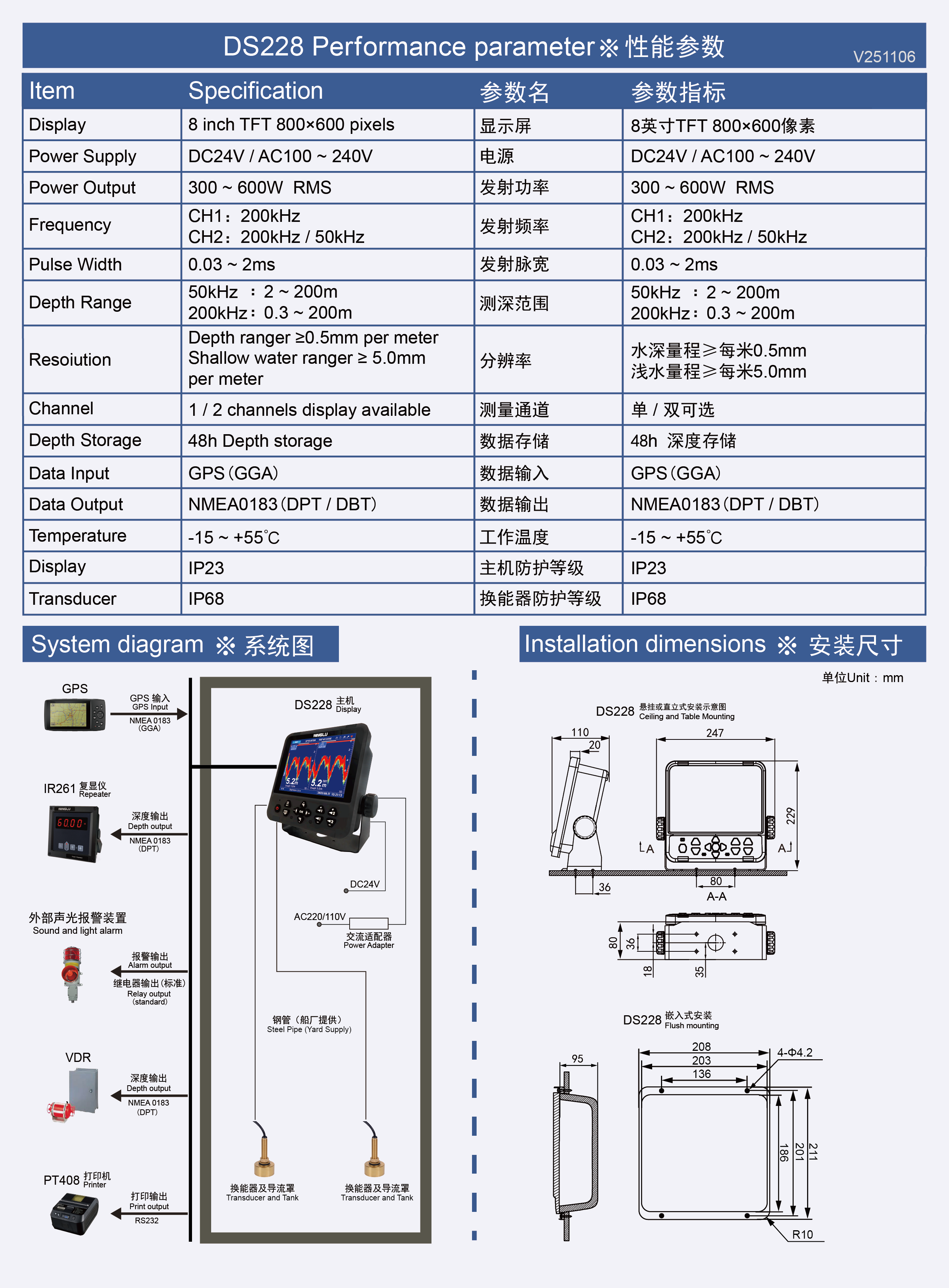

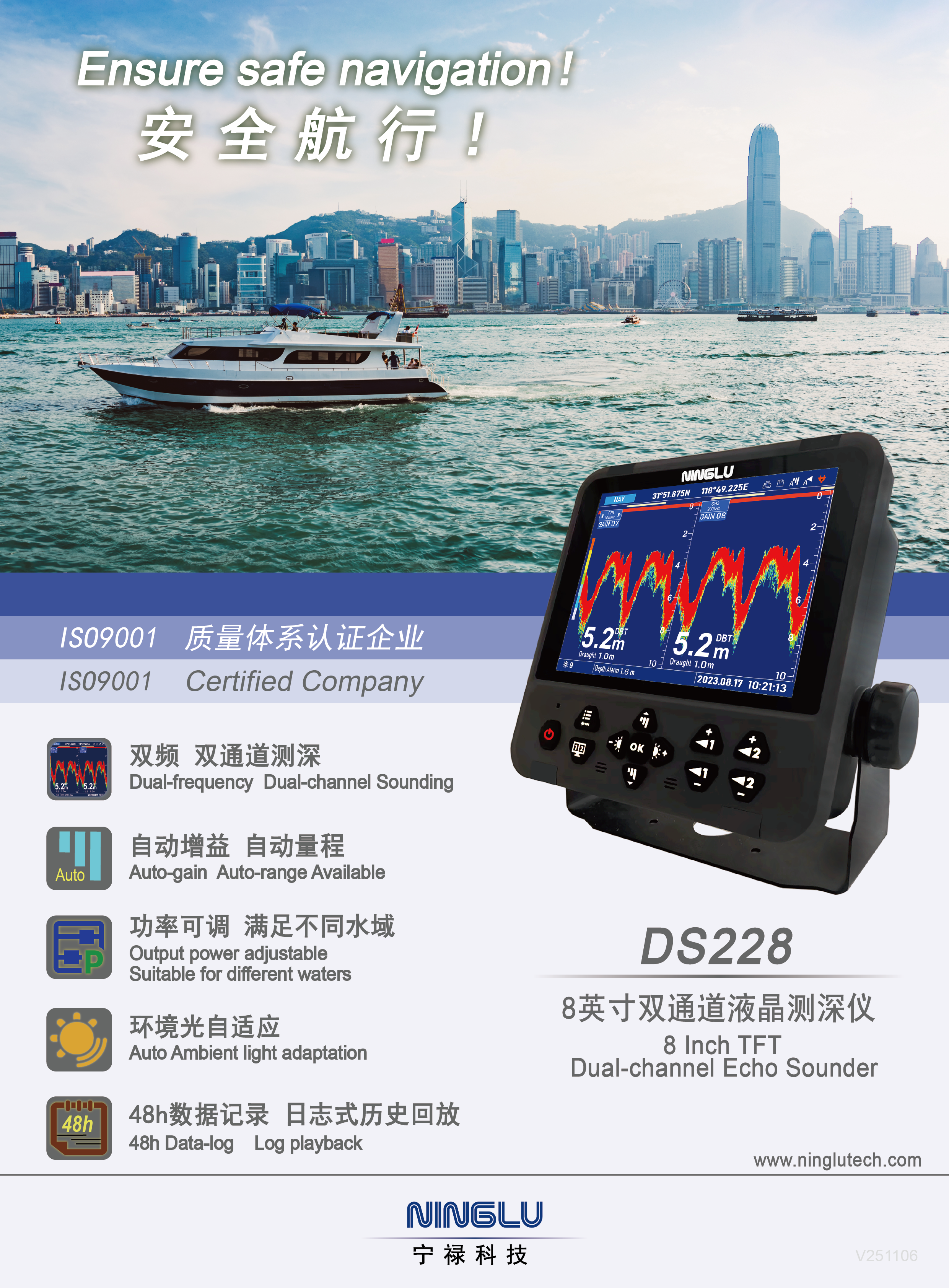

DS228 彩页正面 V231113DS228 彩页背面 V231113

Power
DC:18.0V-31.2V
AC:2201110V
Channel
1/2 channels display available
Output Power
300W-600W RMS
Transmitting Frequency
0.03ms-2ms
Palette
7 echo intensity color levels
Time Scale
30s
non-stop loop display
Minimum measurable depth
0.3m
Depth Range
50kHz:2-200m
200kHz:0.3-200m
Picture Speed
Stop
Slow
Standard
Fast
Depth Storage
48h Depth Storage
Range
Min 1.0m
Max 200m
