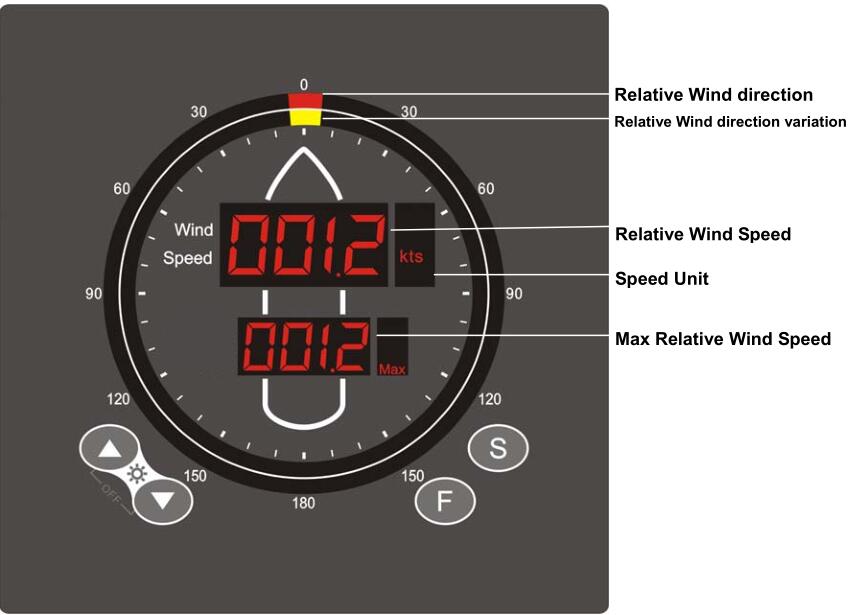

The IR761 wind repeater is a combined display for wind speed and direction.
It receives NMEA0183 signal from a marine anemometer (talker), and displays the wind speed and max wind speed on digit LED, wind direction on a double LED circle.
Its 144x144 Din size cabinet is suitable for panel (flush) mounting. Also the tabletop and wall mounting is available with the bracket.

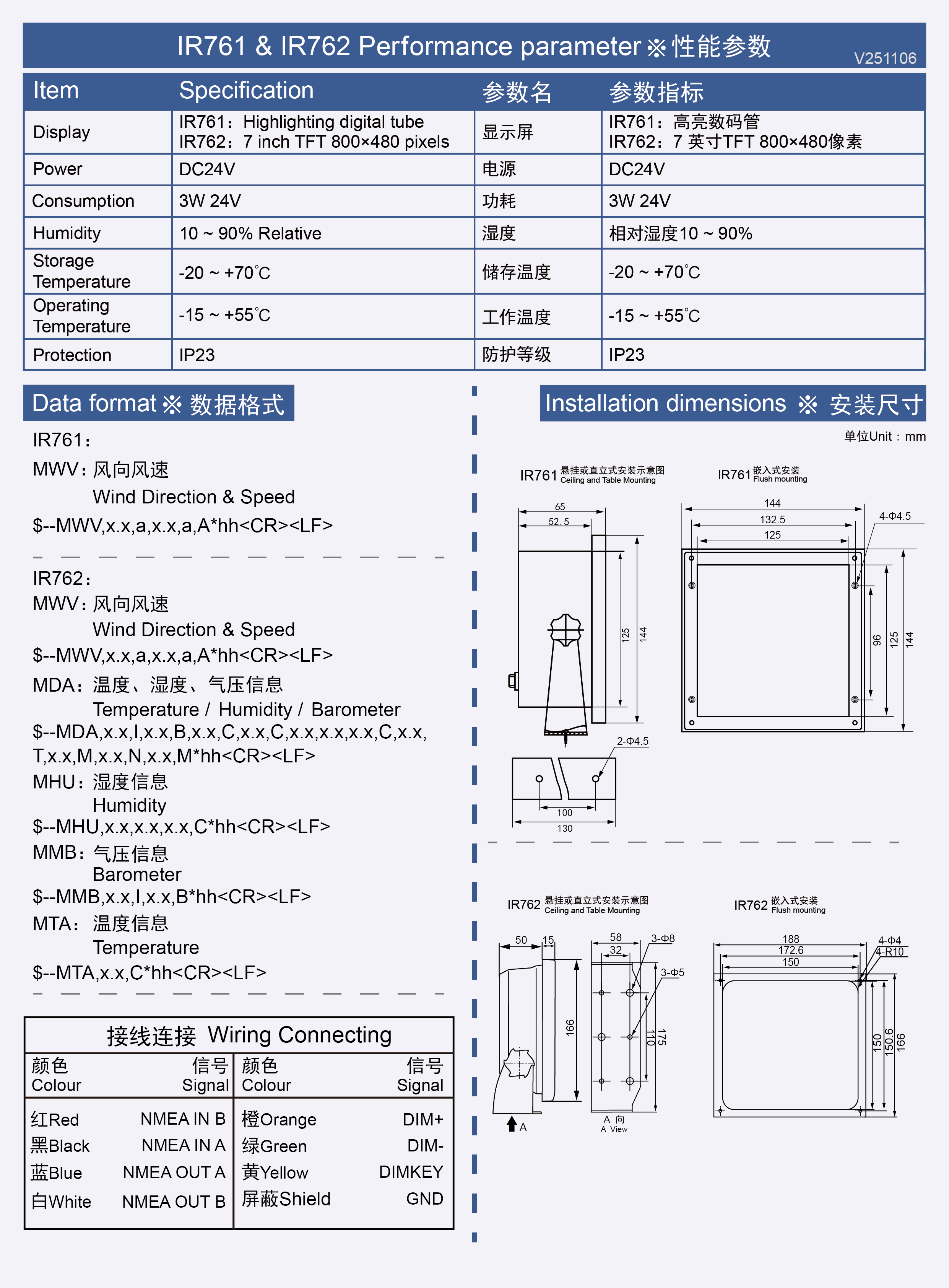

ITEM | SPECIFICATIONS |
Measurement | L144mm×W144mm×H62mm |
Flush mounting window | L125mm W125mm |
Weight | 1.4kg |
Power & Voltage | DC24V (18~33V) |
Inputs | RS422 NMEA0183 |
$--MWV,x.x,a,x.x,a,A*hh<CR><LF> |
Operation and Installation Manual Download
Operation Manual IR761 V170101.pdf
