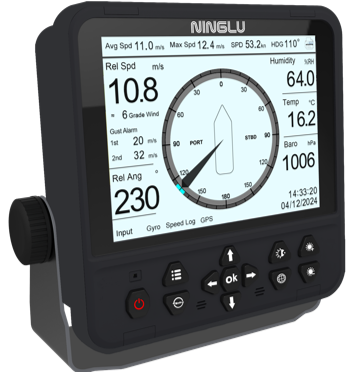

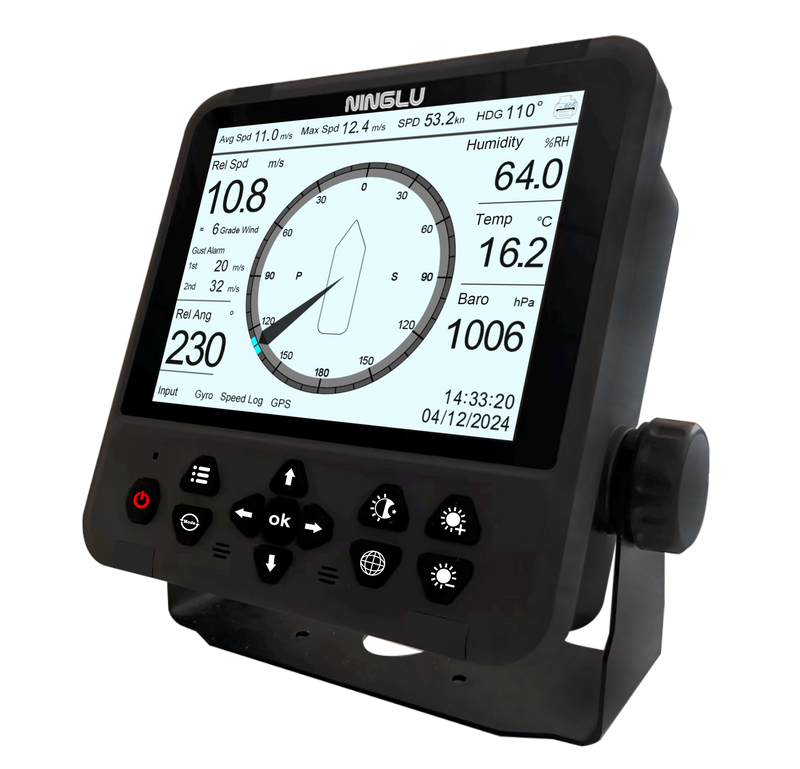

Weather Station AM706D

  • AM706D



The marine weather station AM706D is a multi-functional measuring instrument.

It can accurately measure and display real-time relative wind speed and direction, true wind speed and direction (with GPS input), air temperature, relative humidity and barometric pressure.

In addition, it can print these parameters of time, longitude and latitude, ship speed, and navigational signal. It is important and necessary for observation and safe navigation.


▶ 10.4 inch color TFT LCD
▶  Relative/True wind direction & speed
▶  Temperature, humidity and air pressure
▶  Alarm of wind speed/temperature/humidity
▶  Data print out with printer DUP-414 (optional)

Display 10.4 inch color TFT LCD
Power Supply DC24V (18~33V)
Wind direction range: 0~360°
Wind direction accuracy: ±1°
Wind speed range 1.2~60m/s
Wind speed accuracy ±5% (min 0.1m/s)
Min start speed ≤1.2m/s
Temperature range -20~+80°C
Temperature accuracy ±0.5°C
Humidity range 0~100%RH
Humidity accuracy ±4.5%RH
barometric pressure range 500~1100hPa
barometric pressure accuracy ±4hPa

Operation and Installation Manual Download

NLT-AM706D-SSEN AM706D Weather Station Manual V190626.pdf

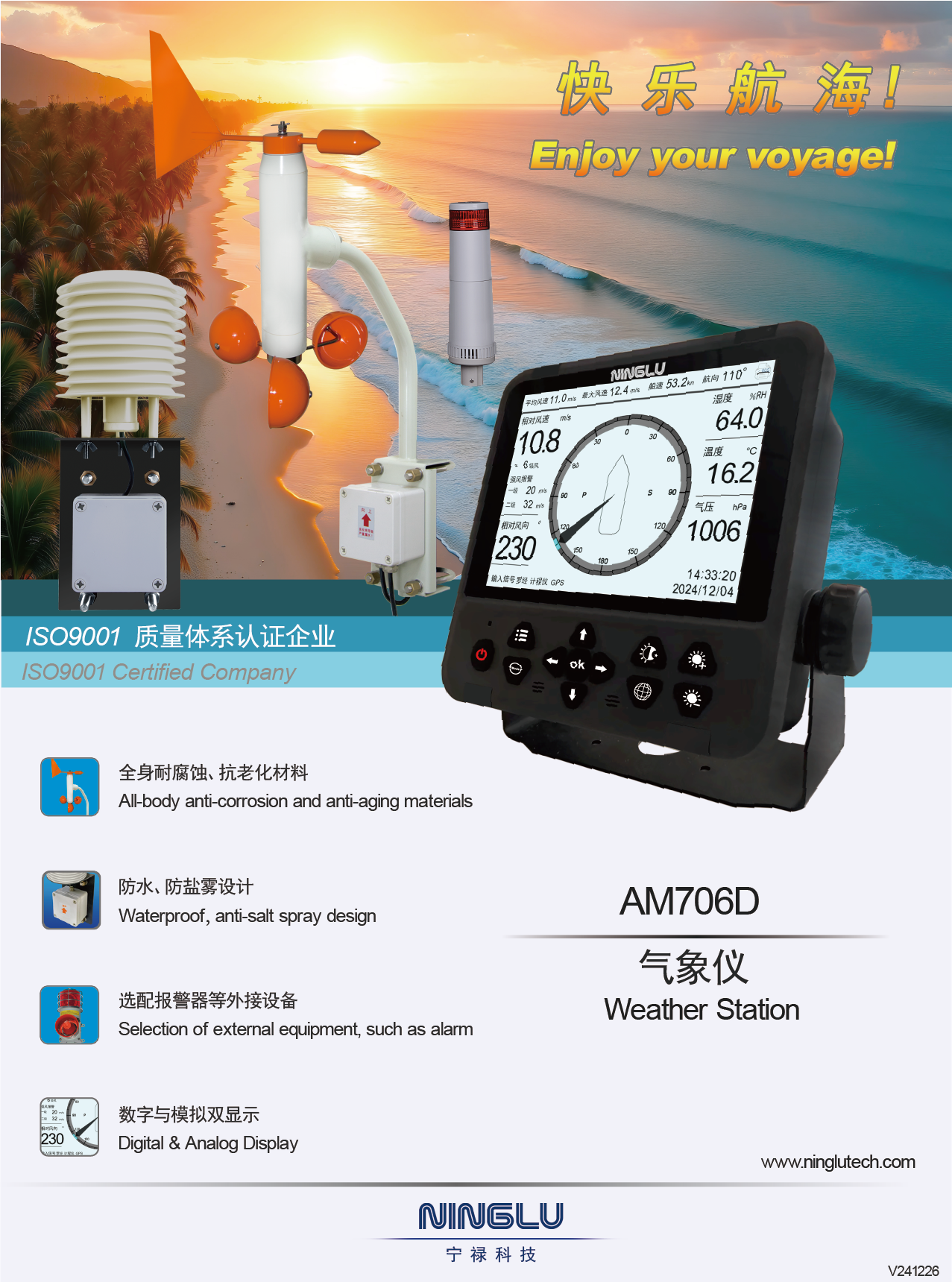

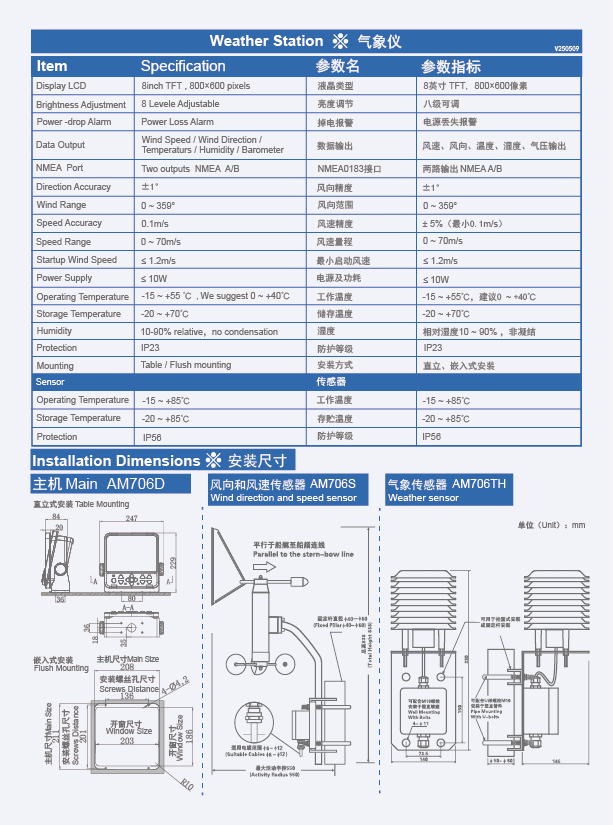

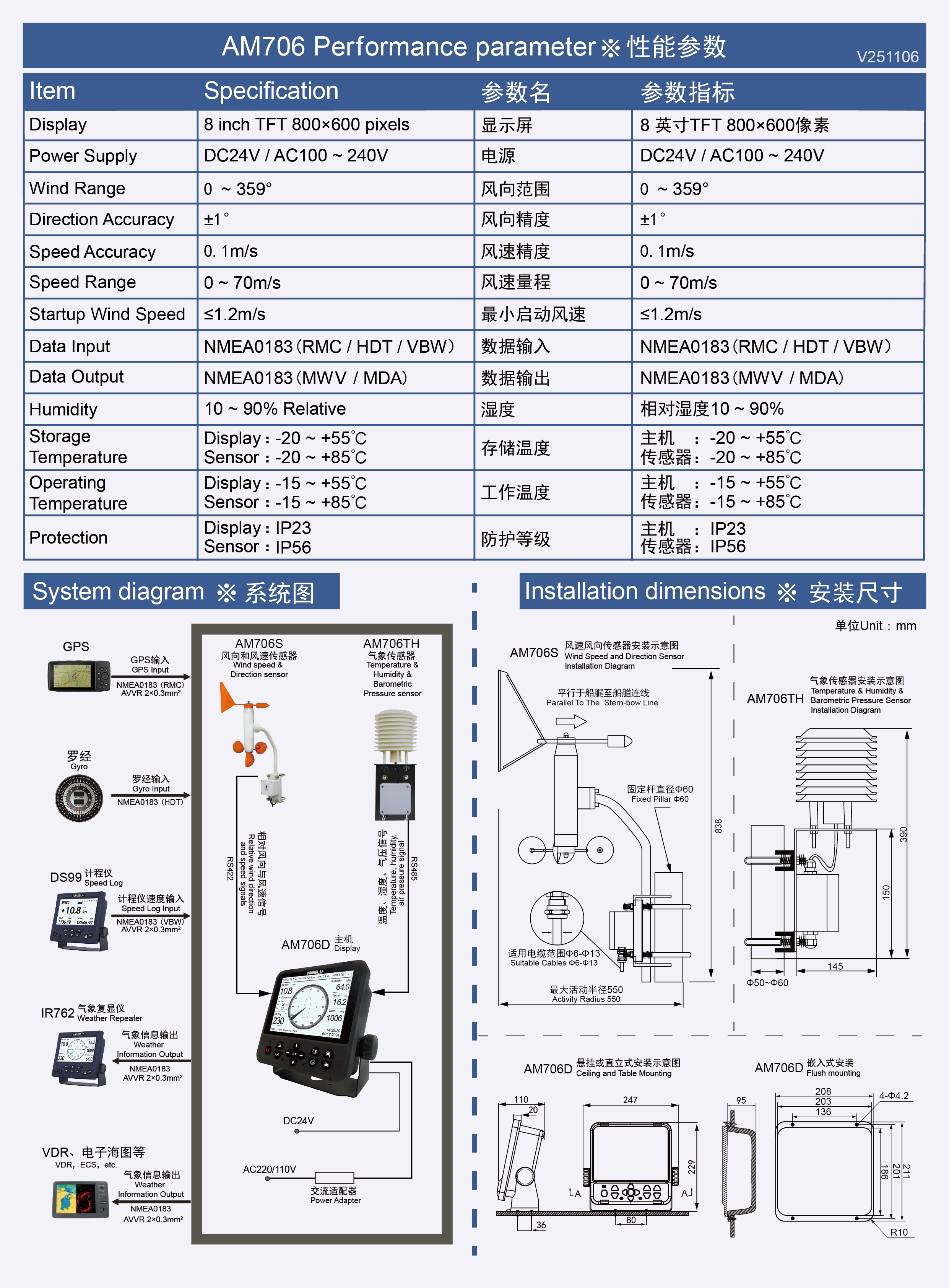

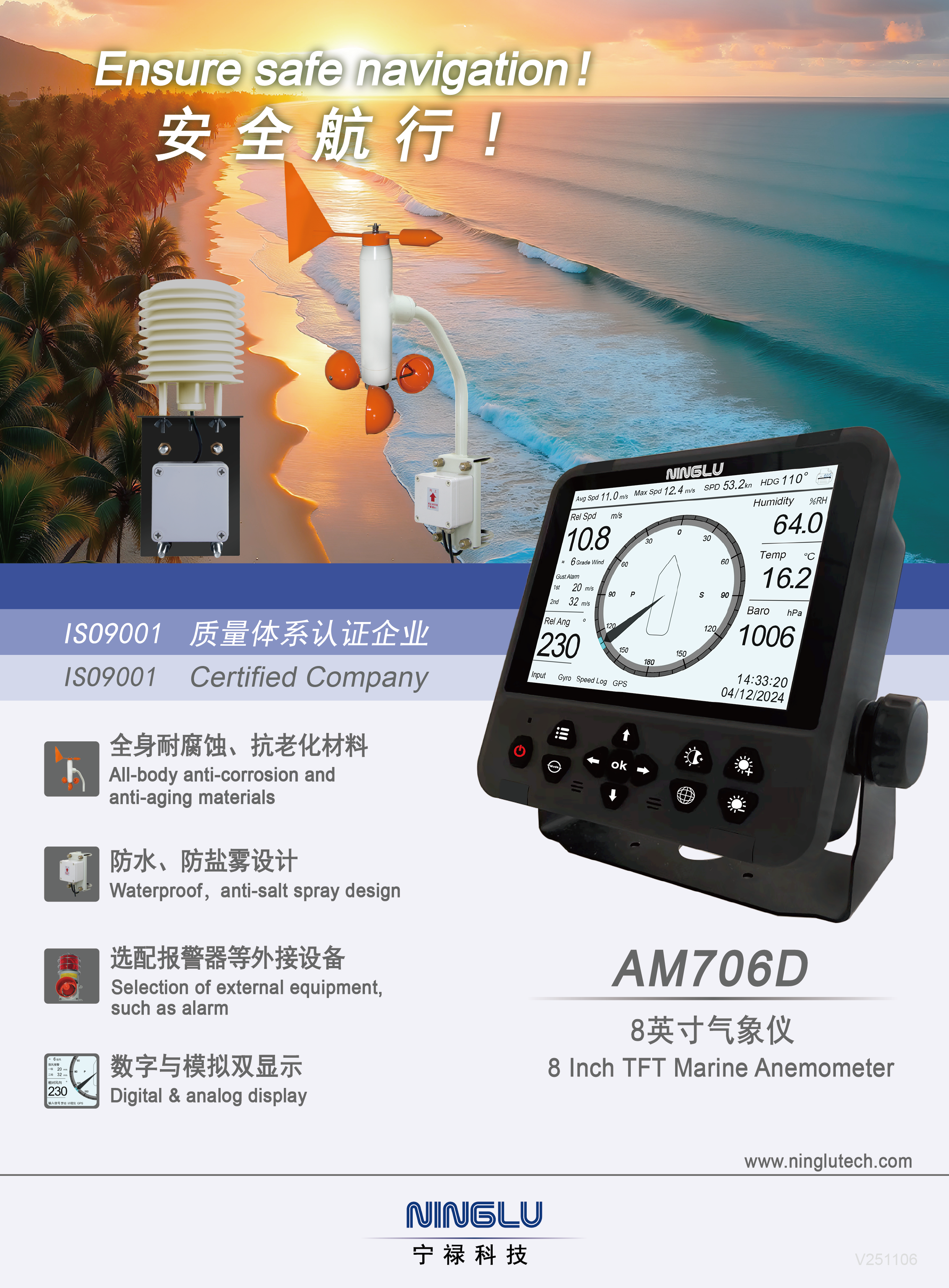

AM706D彩页正面 V200410AM706D彩页背面 V190625

Operation and Installation Manual Download

NLT-AM706D-SSEN AM706D Weather Station Manual V190626.pdf
