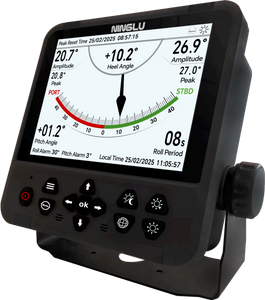

Electronic inclinometer IM330 is a device to measure ship hull posture, including roll actual angle, roll period, roll amplitude, pitch actual angle, pitch period, pitch amplitude, date, time, longitude and latitude.
It also has alarm function for ship’s officers to avoid dangerous situations and the alarm messages (date, time, longitude, latitude, roll angel and pitch angel) are recorded in the history for check.
Features
| ITEM | SPECIFICATIONS |
| Dimension | H264 x W270 x D93 mm |
| LCD | 10.4 inch TFT color LCD, 640X480 pixels |
| Power Supply | Two channels, DC 18.0V～31.2V，(24V, -25%～+30%) |
| AC 220/110V（50/60Hz），with AC adapter | |
| Alarm Type | Roll Alarm, Pitch Alarm and Power Failure Alarm |
| Alarm | Flashing and Buzzer (press any key to cancel alarm) |
| History Storage | 20 items×407pages |
| Output/ Input | NMEA 0183 |
| Input Baud Rate | 4800bps |
| Output Baud Rate | 4800bps |
| Roll / Pitch angle range | -90°~+90° |
| Roll / Pitch angle accuracy | ±0.1° |
| Roll / Pitch amplitude range | 0°~+90° |
| Roll / Pitch amplitude accuracy | ±1° |
| Roll / Pitch period range | 4~40s |
| Roll / Pitch period accuracy | 1s |
| Working TMP | -15°C~+55°C |
| Waterproof | IP23 (main unit) and IP 67 (inclination sensor) |
| Weight | 3.7kg |
Operation and Installation Manual Download
